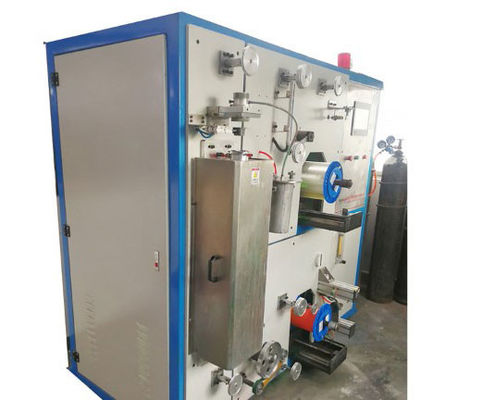

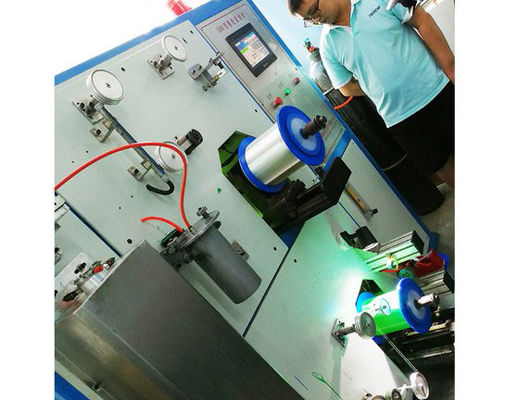

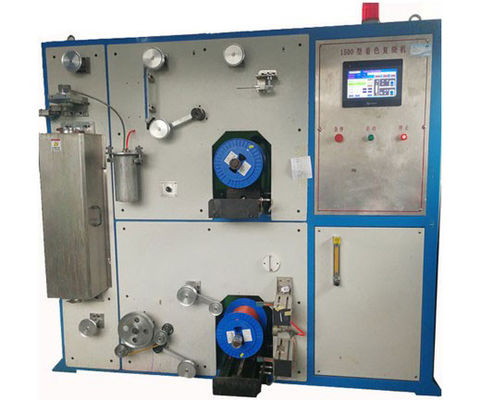

Rongbang RBTX-1200 Optical Fiber Coloring Winding Machine for Fiber Optic Cable Production
RBTX-1200 Optical fiber coloring rewinding machine is mainly used for full color chromatographic coloring of SM and MM fibers, which is convenient for identification of multiple fibers optic cables . At the same time, the device can also be used for rewinding segmentation of optical fibers.
Features:
The UV curing oven is used to effectively improve the curing effect of coloring. The equipment is controlled by German Siemens S7-200 series PLC, with high automation and can operate multiple devices by one person.
Technical Parameters
| Parameters | Value |
| Structure speed | 1200m/min |
| Coloring layer thickness | 3-5um |
| Pay-off tension | 0.2N-1.0N±0.05N |
| Take up tension | 0.2-1.0N±0.05N |
| Traversing pitch | 0.1-2.0mm |
| Excess loss after coloring | ≦0.02db/km |
| Optical fiber reel size(MAX) | ø236×ø25.4×ø225mm,weight:10kg(25.2km/50.4km reel) |
| As ususl preceding die | 0.26mm, coloring die:0.256mm |
| Machine size | L1900mm*W1350mm*H2100mm |
| Total power | About 11KW |
| Normal running power | 5KW |
| Coloring capacity | 60km/h |
