Rongbang 50 Line Outdoor Fiber Cable Production Line PBT Fiber Loose Tube Line
Description
PBT Fiber Cable Production Line, Optical Fiber Loose Tube Cable machinery:
This equipment is mainly used for extrusion production of secondary coating 1~12 core /24 colored bare fibers bundle tube with jelly filled, and extrudsion material is sutiable for modifying beign PP and PBT.
Technical Parameters
| Parameter | Value |
| fiber and finished cable diameter | 2~12 cores,1.5~5.0mm |
| Pay-off tension | 0.4～1.5N±0.05N |
| Specification of reinforcement pay-off reels | φ236*φ160*108mm, φ236*φ160*236mm |
| Hot water temperature | RT～70℃±2℃ |
| Take-up tension | 2.5～8.0N |
| Structure speed | 300m/min |
| Production speed | 20～300m/min(Ф1.8mmPBT loose tube) |
| Overlength control | (0～3‰)±0.2‰ |
| Meter error | <1.5‰ |
| Specification of reinforcement take-up reels | PN630mm - PN800mm |
| Production line dimension | 45x3x2.5m |
| Power request | 380v + 5% 50Hz AC 3 phase +N line + ground line |
Line Configuration

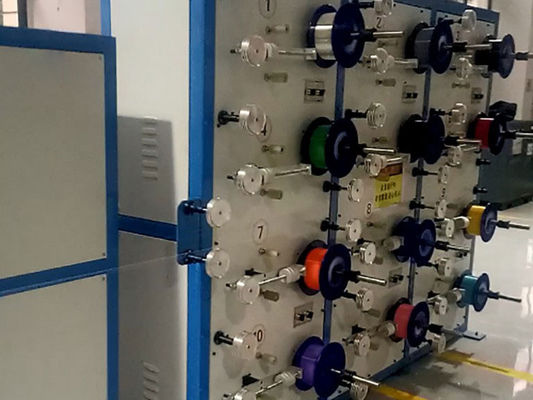

1. Fiber active pay-off (12 or 24 heads option);
2. Jelly degassing and filling device;
3. 50 extruder group;
4. 50KG dryer and hopper;

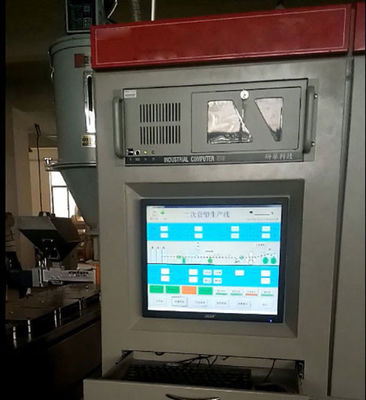

5. PLC+IPC FIBERCAN program electry control cabinet;
6, 4 m mobile hot water trough + hot water tank
7, wheeled capstan;
8. 12m Cold water trough + tank with blowing dryer;
9. Chiller;
10. Wheel Capstan;
11. Diameter laser gauge;
12. Take-up tension unit;

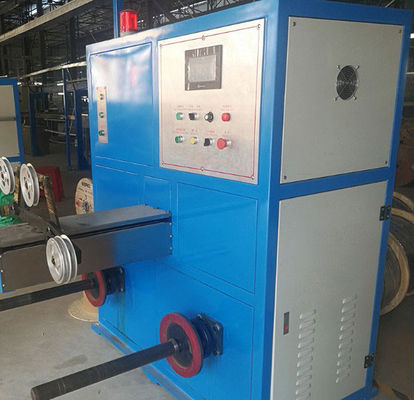

13. φ800 dual reels take-up.
Above full set configuration is adjustable according different structure cables' production request.
